• Drop forged are quenched and tempered for optimum strength
• Furnished with Unified National Coarse (U.N.C.) threads
• Special threads and lengths
• Pack of 1 EA
• Manufacturer part number: 7100228
• UPC Code: 204183167150
• Manufactured in accordance with the latest revision of ANSI/ASME B18.15

Specifications:

• Eye Inner Diam [Nom] = 1 13/16 in
• Eye Outer Size = 3 9/16 in
• Load (Max) @ Angle = 9,500 lb @ 0 °; 5,000 lb @ 30 °; 3,600 lb @ 45 °; 2,800 lb @ 60 °; 2,400 lb @ 90 °
• Load Cap. [Nom] = 9500 lb
• Material = Forged Carbon Steel
• Overall Length [Nom] = 2 1/2 in
• Quantity = 1 per box
• Thread - TPI or Pitch = 1 in - 8 UNC

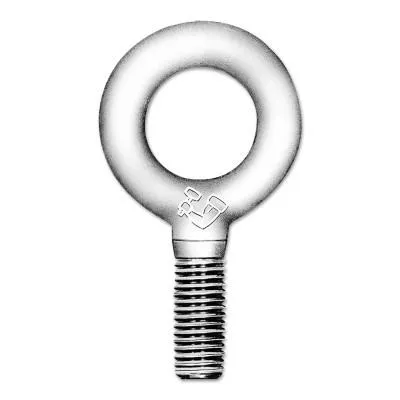

• Type = Eye Bolt-Shouldered
• Wt. = 2.09 lb
• This is a normal stocking item.
