• Drop forged are quenched and tempered for optimum strength
• Furnished with Unified National Coarse (U.N.C.) threads
• Special threads and lengths
• Pack of 1 EA
• Manufacturer part number: 7100222
• UPC Code: 204183166540
• Manufactured in accordance with the latest revision of ANSI/ASME B18.15

Specifications:

• Eye Inner Diam [Nom] = 7/8 in
• Eye Outer Size = 1 7/16 in
• Load (Max) @ Angle = 800 lb @ 0 °; 225 lb @ 30 °
• Load Cap. [Nom] = 800 lb
• Material = Forged Carbon Steel
• Overall Length [Nom] = 1 1/8 in
• Quantity = 1 per box
• Thread - TPI or Pitch = 5/16 in - 18 UNC

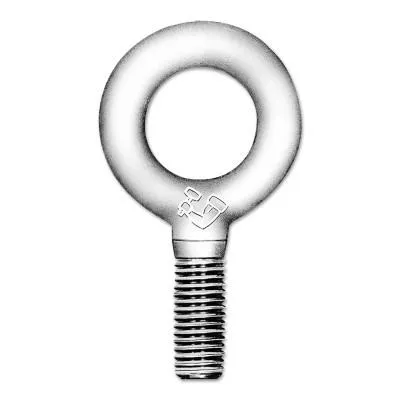

• Type = Eye Bolt-Shouldered
• Wt. = 0.08 lb
• This is a normal stocking item.
